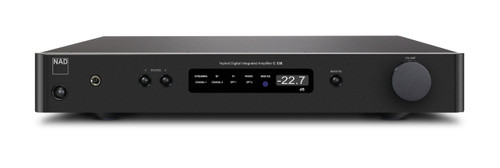

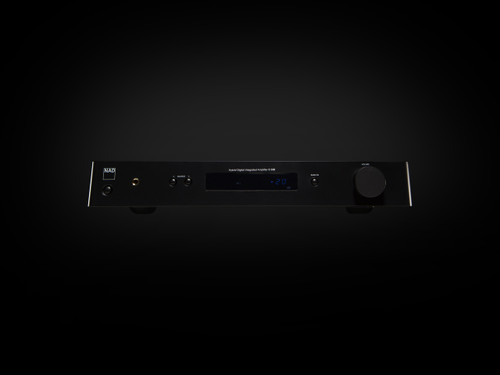

NAD C338 Integrated Amplifier

$1,199.00
Write a Review
Availability:
In Stock
Shipping:
Free Shipping
NAD C338 Integrated Amplifier

NAD'S NEW CLASSIC AMPLIFIERS. INTELLIGENT. POWERFUL. EFFICIENT.

Introducing the NAD C338

Getting the Basics Right
Built with NAD’s renowned music-first approach to audio architecture and amp design, the C 338 is equipped with the most advanced components commonly found in NAD’s class-leading line of amplifiers. Always starting with the details you can hear and advancing from there, NAD develops low-noise circuitry with the precision and stability to deliver incredible, near-zero distortion sound for the most difficult speakers.

HybridDigital™ Amp Technology
The search for a high-performance Class D solution led NAD to HybridDigital™, an innovative amplifier technology that uses a variable modulation frequency to bring out the life-like qualities of music, while reducing distortion under every operating condition. This highly optimized design gives phenomenal performance to the C 338 amplifier, both measured and subjective.

Efficient Class D Power
NAD has worked tirelessly to create the best performing Class D amplifiers that are energy efficient and produce beautiful sound—not heat—regardless of basic design principles. Using advanced measurements and data, NAD developed the C 338’s highly efficient power supply with a customised Hypex® UCD output stage to pump out 160 watts continuously and over 300 watts instantaneously to meet the demands of the most dynamic music. This new design is very linear over a wide bandwidth and provides consistent, noise-free performance for the amplifying stages with near perfect regulation of voltage.

Always Ready for Streaming
The C 338 has Chromecast built-in so you can cast music, tunes, podcasts, and playlists from your favourite apps on your phone, tablet or laptop to your stereo system. Spotify Connect® lets you discover millions of songs and stream them directly to your C 338 using the Spotify® app for a rich, wireless music experience. With the added flexibility of Bluetooth®, your music streaming possibilities are truly limitless with the C 338.

Built-in Phono Stage for Vinyl Listening
Connect a turntable to the C 338 with its built-in phono preamp that applies the perfect amplification to your vinyl collection. Using a MM phono stage and an innovative low-noise circuit path, the C 338 can reproduce the warmth of LPs with accurate RIAA equalization and control the infrasonic noise that is in all recordings, without ever affecting the bass response.

Flexible Connectivity
With a wide array of connections, including a separate headphone amplifier that can drive high-impedance studio monitor headphones, the C 338 is ready for any type of listening. Line inputs can accommodate all kinds of analogue source components, offering ideal input impedance with linear ultra-low noise buffer amplifiers to preserve the musicality of recordings. Also connect a subwoofer with low impedance line outputs and extend the versatility of this budget-friendly, do-it-all amplifier.

KEY FEATURES

  • 50W x 2 Continuous Power into 8 or 4 Ohms
  • Wi-Fi enabled with network streaming of music services, internet radio,and UPnP
  • Bluetooth A2DP with aptX supported
  • MM Phono input
  • TV audio input
  • SPDIF coax and optical inputs
  • Subwoofer out
  • Headphone amplifier
  • Bass EQ
  • IR Remote
  • Mobile Control App for smartphone and tablet

OVERALL SPECS

  • Continuous Output Power into 4 Ω and 8 Ω (Stereo)
  • >50W (at rated THD, 20-20kHz, both channels driven)
  • IHF Dynamic Power
  • 2 Ω 210W
    4 Ω 150W
    8 Ω 80W
  • THD
  • <0.o3% (250mW to 50, 8 Ω and 4 Ω
  • Signal/Noise Ratio
  • >98dB (A-weighted, 500mV input ref. 1W out in 8 Ω)
  • Clipping power
  • >60W (at 1kHz 0.1% THD)
  • Peak output current
  • >18A (in 1 Ω, 1 ms)
  • Damping Factor
  • >300 (ref. 8 Ω, 20Hz and 6.5kHz)
  • Frequency Response
  • ±0.3 dB (20Hz-20kHz)
  • Channel Separation
  • 1kHz >75dB
    10kHz >65dB
  • Input Sensitivity (For 50W in 8Ω)
  • Line In: 380mV, Digital In: 18%FS
  • Sample Rate
  • Up to 192kHz/24bit

GENERAL

  • Standby Power
  • <0.5W
  • Dimensions (W x H x D)
  • 435 x 70 x 285mm (17 1/8 x 2 13/16 x 11 1/4)”
  • Net Weight
  • 4.85kg (10.7lb)
  • Shipping Weight
  • 5.85kg (12.9lb)
